Have a nice winter solstice

For those too busy to read any further, click here.

Important: archive updated January 2nd, you need to delete old high score file as it's not compatible any more.

Due to some rather unfortunate events in the family I haven't had as much time for PR as I would have liked to, so there are no major changes. Minor changes include:

• fixed all but one of known bugs.
• 2500 bonus points if you clear a ship without shooting any enemy droids. Note that if you hit a single droid on ship one, you won't get bonus even if you clear ship two without any shooting as hit counter is preserved from one ship to the next (same is done with accuracy calculation).
• you can reduce enemy droid pulser count in the subgame by damaging them. This doesn't have much effect with the higher class droids, and you will have to cope with whatever energy the droid has left...
• background stars are a bit more interesting now.
• as always, it's slightly smaller and faster :)


As I haven't had much time to test this one, report any oddities please.

Changes which didn't make it to this version:

• subgame bonus points for 11-1 / 12-0 wins. No time to fix the bugs caused by this...
• raiders. You know, those annoying rogue droids in Paradroid'90.

Even if my time for coding has been limited, that doesn't mean that I haven't thought about the game during the slow times at work. I'm positive that the actual playing area can be enlarged by t least one character row. With C128 I think it might be possible to do two or three additional rows without the game slowing down. We'll see if I ever have time for that.

I'm sane, thank you :P

Contrary to some other claims I'm not crazy, or at least I imagine so.

That's not the only error in Paradroid talk page - so here we have (drumroll, please)

The Definite C64 Paradroid Version Guide

• Paradroid (original), 1985


• Paradroid Competition Edition, 1986
  This one is identical to the original, except that it has some vertical blank waits removed. That allows the game run faster most of the time.
  Scroll code is unchanged, whoever wrote that it was enhanced clearly hasn't disassembled all versions and done comparisons between them...


• Paradroid Metal Edition a.k.a. Heavy Metal Paradroid, 1986
  Minor changes, mostly allowing the use of multicolor chars, remaining ones save couple of cycles and/or bytes here and there.
  Uses C128 2 MHz mode in top/bottom border for higher speed.
  Fixes the decimal mode flag bug which causes weird sound fx in earlier versions.
  Some scroll text changes - this includes two bad chars which seem to be in every original ME tape!


• Paradroid Redux, 2006-
  Nanos gigantium humeris insidentes.

Tweaking

Too little time for anything major (yet!) but scoring and subgame have seen some little changes.

• Bonus score if you do well in subgame. 20% bonus for each remaining pulser if you win 11-1, 40% if you win 12-0


• 2000 point bonus if you're wimp and use only transfer to overtake the ship. Not enough to compensate for score lost by not shooting droids, as I don't want to encourage that kind of cowardism ;)


• Shoot droids to pieces before transferring to them - their pulser count reduces by one for every 16 points of damage. Don't forget that you have to cope with whatever energy they have left, though!

In addition to adding small things I've also discarded some ideas

• Grenades/mines. What to do when droid explodes a mine but there are no free sprites?


• Two player mode through link cable. That cuts down sprites available for enemy droids and fire, lowering the difficulty considerably. With fever sprites it's also harder to hide the fact that the game teleports droids away if it runs out sprites.

I have doubts about transport pads as well. These would transfer player within a deck, but that would require resetting droid positions to avoid several visibility problems. And that would mean teleporting all droids, meaning you could face the same robot you were running away just a second or two ago half a deck away. You may say that there isn't much realism in the game, but that makes it even more important to preserve what's left of it!

Wasting time

How can one waste gazillions of cycles to mirror one sprite? Quite easily, just forget speed and concentrate on compact code.

MirrorSprite

    ldy  #0
    sty  src
    sty  .5+1

;   src = A<<6 | $4000

    sec
    ror
    ror  src
    lsr
    ror  src
    sta  src+1

;   ptr = X<<6 | $4000

    txa
    sec
    ror
    ror  .5+1
    lsr
    ror  .5+1
    sta  .5+2

;   get sprite multicolor flag

    ldy  #$3F
    lda  (src),y
    sta  tmp2      ; b7=1 if multicolor

    lda  #60

.1  tax            ; x=60,61,62, 57,58,59, ... 3,4,5, 0,1,2

    lda  #3
    sta  bytesLeft

.2  dey            ; y=62,61,60, 59,58,57, ... 5,4,3, 2,1,0
    lda  (src),y
    sta  tmp1
    lda  #$01
.3  lsr  tmp1      ; 5
    bit  tmp2      ; 8
    bpl  .4        ;10  hires, 8 loops 1 bit each

    php            ;13  else multicolor, 4 loops 2 bits each
    lsr  tmp1      ;18
    rol            ;20
    plp            ;24
.4  rol            ;26
    bcc  .3        ;29  8*16=128 / 4*29=116
.5  sta  $8000,x   ;    63*128=8064

    inx
    dec  bytesLeft
    bne  .2

    txa
;   sec            ; asserted with "bcc .3"
    sbc  #6
    bpl  .1

    rts


Hey, I just realized I can make it at least one byte sorter! ;)

Update: cycle counts were way off...

Byte Liberation Front

I keep surprising myself with all the memory I can squeeze out when I start trying. When reordering the multicolor charset from the Metal Edition Paradroid I finally took a good peek at the alpha charset. Eliminating duplicate chars and blanks freed another 31*8 bytes and couple more in graphics font. There are several 8-byte data areas I can scatter anywhere in the memory, but to keep it neater I should do some rearranging. Finding the correct data block in binary file whenever I want to change something doesn't sound fun to me.

In case you're wondering about those five blank chars below "8" - "c" and why they aren't used... Chars $28-$2c (top halves of those 1*2 characters) are at offset $0140 and need 40 bytes. (Not so) interestingly that's the same offset and size as 10th character line on screen, which is the first line used for the deck display. To change all sprite pointers and displayed charset with single $d018 write I simply switch from blank screen + blank font to actual game screen and graphics at the correct line. However, VIC-II has already read the character pointers at that time (from blank screen) which means that I have to copy the top line from game screen into the blank screen. That in turn makes chars $28-$2c visible if used because the blank screen is actually the first half of the blank font... So, those chars are unusable as graphic data both in alpha font and in in-game graphics font. That however doesn't mean that they can't be used for anything else ;)

From graphics to sound effects... I found out that I can move the main SFX table partially into the RAM under I/O at a cost of ten cycles every time an effect is started. This filled up the hard-to-use $D000 RAM completely, and freed 160+ bytes elsewhere.

Back to graphics with something which is only an idea so far. Compressing droid parts separately would gain ~600 bytes, but I can do even better. If sprites are decompressed into one continuous block, I can use the previous sprite data as codebook which would give better compression at no extra cost. Extra time used for decompression isn't anything to worry about, no one has complained about the sprite mirroring delay yet and that one takes about 15,000 cycles per sprite, 60,000 cycles in total - even if mirrored sprites aren't used at all!

All these summed up give me more than one kilobyte to play with - but what should I fill it with?

Lies, damned lies, and statistics

I needed something to use when deciding which tables benefit most from move to zero page, so I counted words and their occurences in all source files. In addition to giving me the info I wanted, it revealed something else.

Paradroid Redux Top 30 ML Instructions

  1549    lda             202    adc             119    bmi
  1362    sta             175    lsr             108    iny
   679    jsr             167    bcc             106    clc
   394    ldx             163    stx             100    sbc
   380    ldy             151    bpl              85    dec
   313    bne             144    asl              84    eor
   251    rts             133    bcs              83    ora
   245    beq             131    inc              82    bit
   219    cmp             130    sty              81    sec
   210    and             124    jmp              76    dex

Disclaimer: Above counts include some code which is commented out, and I didn't expand all macros either.

Zero page roundup

I finally took the time to change all zero page variable declarations from

var = $02

to

var ds.b 1

and removed all variables which aren't used any more. I suspected I would end up with 30 to 40 free zero page locations, but it turned out to be about 70 bytes! I swiftly used half of it for the two most used object variable tables (16 bytes each), which makes accessing them both faster and smaller. I guess those tables really are accessed a lot, code size was reduced by over 100 bytes... I still have room for another two tables there, but I have to find the ones which gain most cycles/bytes.

Complete list of bug fixes since the previous release:

• Droid teleportation doesn't send them outside the deck any more.


• Waypoint chars are placed onto deck map every time when exiting lift, meaning no more completely confuzed droid army.


• Door status is restored when exiting lift, so droids won't get stuck against them any more.


• The first deck entered after load had waypoint magic chars visible, as they aren't hidden in EnterShip() routine but in EnterDeck(). Instead of wasting three bytes to add one JSR call, I changed the font so magic chars are there after load :)


• Background stars are now really disabled during the intro sequence, that avoids random colors for lower half of "7" char. I disabled them earlier, but that broke when I added more run-time randomizing.

Important bits here.

Update

Two more bugs fixed, one remains... Intro text scrolled beyond the end of page sometimes, and out-of-sight droids were paralyzed on C128. The remaining bug allows droid go through wall in certain conditions, something which I didn't notice on emulator.

Squish 'em

Two bugs found and fixed, both of them having the same root cause. Whenever you change deck in lift, it's built immediately, even if you don't actually enter that deck. This avoids a delay when you exit the lift. However, if you then decide to go back to the deck where you entered lift after, game keeps previous droid/deck status intact but deck map is reset to the default state.

Now, the two bugs:

1. All waypoints are now marked with magic chars for faster detection, and I didn't restore them when re-entering deck. Mea culpa. Now waypoints are decompressed/marked correctly evrey time. This means that some work is done twice when entering a new deck, but it's fast enough to be unnoticeable.


2. Doors keep their state on re-entry, but deck map has all doors closed after decompression. If droid had opened a door when you caused level build in the lift, droid got stuck against/in the middle of a door which was visually closed, but logically open. This bug was there from the beginning. I added some code to restore door visual state when entering a deck, and it seems to work. Doing this with minimum amount of new code made door code resemble spaghetti tho.

New beta out during this weekend, with almost all known bugs fixed. Well, make that all known bugs fixed if I have time for it :)

Another week gone by

And so time passed by with nothing extraordinarily great done...

I found a bug in the latest beta - it teleports droids to the great unknown because I didn't adjust the teleport routine when I changed the waypoint system. Fixing that didn't take long, but with the released beta you need to enter another deck and come back to get droids back. Just visiting a lift doesn't work.

Multicolor is almost working. Almost, but not quite. I really should have done multicolor changes too when I changed the hires font...

I saved 70 bytes in the background star drawing by combining the top and bottom routine, it's not time critical so I could shrink the code without worrying about the speed. Adding random stars and blinking took most of the freed space, but I guess I can accept that.

I've used some of the new droid-specific data in old routines, speeding them up slightly as well as making them smaller. Inserting new droid AI makes every droid take slightly longer time to run, so I need every cycle I can get. I want to make big bad droids get irritated by the smaller ones when alarm is high if possible. I can already see 834 bumping into 329, shooting it out of the way and then rushing into the explosion. :)

One thing to consider is to make two passes through the droids when running them, handling visible ones in the first round and the remaining ones in the second. That way I could exit early if it looks like I'm running out of time. Sorting out-of-view droids by their distance would make it work even better, but sorting takes time...

How about a nice game of chess?

No chess here, I'm afraid. However, if you prefer more action then try the latest version of Paradroid Redux instead. Every bug listed here has been fixed (I hope).

I guess I now can go back to do multicolor changes. I really should have reordered the MC font when I did the hires one, now I need to dig out old notes telling which char ended where.

Update

It seems that this version finally runs solid 25 Hz on PAL C64 when I remove all sanity checks. It does cheat a little, but if you can't notice it that doesn't matter, does it? NTSC C128 should do 30 Hz easily - I want one!

Objects want to be free - but only be freed once

This weekend wasn't all bad in spite of having both my birthday and wedding anniversary (yes, my wife wanted to make sure i wouldn't forget the latter! ;) as I found the reason for the double-free bug - or at least one of the reasons.

I outlined the collision check loop(s) in an earlier entry. What's not shown in that code snippet is caching of outer loop object type, done to speed up the collision type decision. Even when the outer loop object gets removed in the collision the inner loop still continues afterwards. Check out the picture: the laser bolt colliding with two explosions is the object which gets removed twice. If the outer object type wasn't cached then all remaining collisions with it would be NOPs.

I have at least three ways to fix this:

1. don't cache the object type


2. exit the inner loop when outer loop object gets removed


3. check object type against -1 (free object) every time before freeing one

I will do #2 although it means duplicating some code, as I hate to waste cycles for checking for special cases unless it's absolutely necessary. I will rethink my decision if object removal still bugs.

Hum Bug Betatesters

No one tells me about bugs... so I just have to play the game to find them myself! :)

• Droid library had two bugs: every droid class text was the player class, and droid entries went from 0 to 23 instead of 1 to 24.


• Droid count in console was wrong, it ignored some droids.


• Deck layout horizontal scroll was broken. You all did know you can scroll it now, didn't you?


• Maintenance deck had one droid too many on the left part, one too little in the right one. This one you really should have noticed!


• Remaining bugs:


  • Radar is borken.


  • Lift ignores short fire button press just after up/down move.


  • Game tries to free same object twice, this causes a freeze when my sanity check catches it.





I bet there are more, but the last one is the most serious one. Thanks to trurl for first spotting it, now I can cause it too. The easiest way to do it is to enter ship 8 upper cargo when alert is red, then wait in the middle of bottom left room when berzerk droids circle around you shooting like there's no tomorrow. Well, without cheating there is no tomorrow for you...

Oh yeah, forget about the constant energizer animation part of the previous entry - I dropped it ages ago. I just hadn't played any of the official versions for a while, so when testing the Metal Edition it struck me as a difference to Competition Edition.

Morphing into multicolor mode

I made a quick disassembly of Paradroid Metal Edition to see how much I need to change the code to make it possible to use either hires or multicolor graphics. The answer: not much. Color tables are different because only the lowest eight colors are available for character color and because of extra entries for multicolor registers. To use ME graphics I only have to reserve some extra space for the bigger tables and new title screen and add minimal amount of code. As I can do the patching inside the init routine which gets overwritten when game starts this will cost less than 80 bytes. The only thing that concerns me is the time taken by constant energizer animation, that's almost 4 lines more than changing the deck map. Does anybody notice if I drop it? ;)

The disassembly also showed that while Competition Edition was a quick hack to get something out for Xmas (in a double pack with Uridium Plus) Metal Edition got some more attention. Andrew Braybrook removed code which was disabled in the Competition Edition (raster checks which made sure that the original didn't run faster than 16 Hz), and enabled 2 MHz mode in the upper/lower border for C128 users. He also fixed the decimal mode bug which broke SFX randomly and adjusted background sounds for the faster frame rate, among other small things. Some of these changes will end up in Paradroid Redux, no doubt about that.

Too bad that I dislike Morpheus-like graphics in Paradroid myself. Anyway, those people who think that Metal Edition has the "correct" graphics can soon enjoy Paradroid Redux as much as fans of the original.

Weekend fun

After recovering from the last weekend I finished the latest changes. I hope I didn't break anything in the process... Check it out yourself.

• Lots of flicker removed when changing screens.


• Some internal changes which makes it run faster, although it still drops to every 3rd frame under extreme situations.


• Game now knows about droid visibility changes which allows some more AI.

This version has most of the sanity checks removed, so if older routines get confuzed they will trash random memory. Only the droid allocator has code to hang the game "nicely" if it fails unpredictably.

Currently visibility change just flashes droid color. As you can see - or rather as you can't see - flash is only visible when going around corners and through doors. This means that droids approaching from distance have unfair advantage of spotting you before you spot them. This needs to be changed so that at least part of droid has to be visible on screen before it reacts to your presence.

Radar equipped droids won't get surprised as easily as other droids, and as alert status rises every droid with brains will react faster. I'm thinking of using different delay values for direction change, depending on droid's weight and drive. Surely 28 kg anti-grav 821 can stop and turn faster than 227 kg bipedal 751!

Cleaning up

Now that the worst bugs seemed to be fixed, I took some time to fix most of the flickering when the game changed screens. I did that once already, but delaying sprite writes made the flickering come back. Now everything seems to be fine except going to game mode, where sprites are delayed that one frame. I'm not sure if I bother to fix that or not - it's hard to notice the delay without slowing the game down in emulator.

I've spent enough time doing boring tweaking, next day or two will be spent playing the game instead. There are loads of sanity checks to catch the bugs which should be gone now, so playing will be purely for quality control ;)

The mother of all bugs killed

It seems that I finally nailed it! Whenever the collision check had to swap sprite indexes (to avoid having separate routines for droid-laser and laser-droid collision, for example) it also swapped counters for outer/inner loops.

    lda $d015       ; active sprites
    and #$7e        ; mask out player and player_fire
    sta mask

    ldy #7
.outer_loop
    asl mask
    bcs .has_high_sprite
.back_o
    dey
    bne .outer_loop
    rts

.has_high_sprite
    beq .back_o     ; no sprite to collide with

    sty high_sprite ; remember sprite count

    lda mask
.inner_loop
    dey
    asl
    bcc .inner_loop

    pha         ; remember all remaining sprites
    sty low_sprite

;   do stuff

    ldy low_sprite
    pla
    bne .inner_loop

    ldy high_sprite
    jmp .back_o

That one has no chance of working if low_sprite and high_sprite get swapped. Inner loop starts accessing too high sprites, and outer loops messes with lower sprites than intended, eventually accessing sprite 0 (player) and negative numbered sprites (completely random data).

This shows a situation where HLL compilers beat humans when generating code. Human with limited memory can't remember which routines read/write which variables, leading to local variables having way too long life span. Compilers know exactly which locations are needed and when, and that allows them to reuse local variable area much more efficiently.

BTW, that's my only admission to the mantra compiler writers repeat: "modern compilers write as good code as any human". I have seen some pretty impressive compilers for embedded systems, but I have seen them beaten, too ;)

Another Droid in the Wall - not any more!

As expected the game has some trouble running after the changes in droid allocation, but that did make me disable all collisions (which are the only remaining thing bugging because of allocation change) and enabling them one at a time. This pinpointed droid reversal bug into droid-droid collision.

Simplified droid movement logic is as follows

• Move droid unless it's paused.


• If pause count is not NULL, decrease it.


• If pause count is still not NULL, exit movement phase.


• If droid is on waypoint, pause it or give it new x/y speed.

The collision logic for droid-droid logic may also reverse droid direction. If that happens during the game frame when droid was given new direction from waypoint, the droid ends up in the wall unless it was lucky and ends onto another waypoint by sheer luck. To avoid that game checks if droid is on a waypoint and pauses it instead of reversing it in that case.

Waypoint check needs droid character position to compare against waypoint positions. Guess what? Droid char position isn't properly set at that point! Doh!

There are couple of ways to fix this

1. Calculate char pos for the droid to be reversed.


2. Set flag for each droid, telling if it was on a waypoint in a movement phase. That avoids the check altogether.


3. Add two more attribute bytes to each droid, and store the char pos there.

I don't like option 1, as that may require multiple calculations per droid for one game frame. Option 2 is good, as it avoids waypoint check altogether. This saves one to three raster lines if droid needs reversing. Option 3 is good too, as it is guaranteed to save at least one 44-cycle subroutine call per droid. Calculating char pos for explosions is extra work, but explosions are much cheaper than any other object types so that evens it out.

Forgetting to set droid char pos wasn't the only stupid error... My collision check determines colliding object types by calculating index into offset table, then doing calculated jump like this:

    lda     jumpoffset,x
    sta     jump-1
    bpl     *
jump


jumpoffset
    dc.b    droid_droid-jump,droid_laser-jump,...

It would have worked much better if assembler told me that jump offsets got big enough to get negative... This means that the current beta version skips some collision checks.

With those bugs fixed I just need to find out what's wrong with collisions involving droid fire. At least one of them messes up my droid_to_sprite and sprite_to_droid links.

It's working - time to break it!

After couple of changes the game now seems to run solid 25 Hz on PAL C64 (and should do 30 Hz on NTSC C128 but I have no means to verify that), but to make sure it stays that way I'm finally replacing the old droid table with a proper droid allocator à la Mike. That avoids copying data every time an object is removed.

Direct result of that is that I can freely add more data for each droid as I don't have to worry about removal time. I have some ideas how to use that to speed up the game and add new features, like droid behavior when its visibilty changes. Now droids actions between waypoints are limited to whether to fire or not, flee/pursuit decision is only done at waypoints. I want to make droids more intelligent, even if it's nothing more than pause and then reverse their direction when visibility changes. That way 123 entering a room when player controls 999 will get second thoughts about going where it was intending to, and retreats instead.

I hope that the current beta works enough to keep you happy, it may take a while before the game works again...

Speeding causes fatal crash in space!

"Did you really think you could run 1.3 MHz and not crash, sir?" the C128 cop asked me after the game went awry on my FrankenDiesel.

It's true: the game was too fast on C128! What happened was that at the beginning of a game frame the main loop told IRQ "Grab sprite register data next display frame and stuff them into VIC-II when I'm busy minding other business, please" and went on to do its other business. The screen redraw takes almost a complete display frame on PAL, more than one frame on NTSC, so everything was ok. But with C128 running 2 MHz in the lower/upper border screen redraw finishes a lot before the IRQ grabs the sprite data. In fact it finishes so early that the main loop can sometimes run the complete game loop before IRQ gets to do its task. An there the disaster strike: the main loop told the interrupt "do it next frame" before IRQ had done the previous task and so sprite registers never got updated.

I fixed this with a working frame limiter, forcing the game use at least two display frames for each game frame. There was a limiter before, but that broke down when I added VIC-II buffering. I bet it knew that it could cause havoc that way...

But wait - C128 problem isn't fixed yet! Because main loop still runs droids before IRQ grabs the sprite data, sprites may get the position meant for the next game fram, and they start to wobble around the screen again. And that's what I was trying to avoid in the first place when I added the buffered writes.

Solution was surpisingly easy: screen drawing finishes somewhere around raster line 0 on PAL C128, later on all other computers. So I can do the sprite register writes in the bottom-of-the-display-IRQ which is guaranteed to come before any droids get run. This has the added bonus that now the copy loop runs in 2 MHz, speeding up the game ;)

Another bonus is that now I can allow the game run every frame if I really want. If I ever write C128-specific version I can save ~4000 cycles in the screen draw alone by unrolling the loop - that takes "only" 8 KB or so. In the end C128 version might run at 50 Hz all the time - Paradroid Redux Competition Edition, anyone?

Update

Bugfix at the usual place. Title screen crashed randomly on C128 too, that should be fixed now.

Double the fun!

Rather quick new release, fixing some things:

• Subgame didn't clear it's local variables before retrying after deadlock.


• Background stars flickered on NTSC, now screen/star draw is done in two parts so stars get updated in time.


• "Floating" player fire hopefully fixed by caching joystick position through the routine.


• Sound routine tweaked for sharper sounds, unfortunately this has changed couple of sound effects.

If the game hangs it has most likely tripped on one of my sanity tests. Freeze the game and tell me the program counter so I can check where that happened.

? Deadlock error, please debug

I found the bug which broke the transfer game. Some time ago I got rid of routine which finds starting locations of tokenized strings and stored them into a temporary table for later use, and replaced it with realtime search. There was no speed difference anyway because of raster sync and that saved some memory. Not only in the printing routines, but I could remove now unnecessary temporary buffer clearing from multiple places.

Unfortunately one of those places was in the subgame, in the retry loop to be excact. Ok, it worked perfectly unless you got deadlock and there were auto pulsers active. In that case temporary buffer still had auto pulser data active and copied color from now gone pulser position to the central bar. Usually there was wire, resulting in black color. Fix was simple: put that buffer clear back.

I've been tweaking the sfx routine further. Now it takes about 8 lines at maximum and sound starts are clearer. That however intoduced nasty snapping sound to repeating sounds, especially transfer fx. I think I can prevent that by checking if the new sound is the same as the previous one, and skipping gate off in that case.

Sound of optimization

I went through the sound effect routine and optimized it a bit. As a result it's slightly faster, but what's more important is that now I can move all sfx zero page variables to "normal" memory and that will only cost one or two raster lines. That means that I have over 30 ZP locations which I can use for other purposes. Too bad that VICE doesn't have memory access profiler, as with one it would be easy to find out which variables/tables are accessed the most. Counting label occurences in source files gives some hints, but that doesn't count loop iterations etc. Time to do some VICE hacking I guess. Unless I find something more interesting to do, of course. Running out of interesting things made Mike add weapons systems to XeO3, I'm facing the same problem here!

Well, I have the droid allocator to rewrite too. The problem with the current method is that there is no allocator at all, so every time droid/laser/explosion is removed, every object behind it in the list needs to get moved down in memory. Changing this will make object removal a breeze and solves some other problems at the same time, but changing it also means that everything is broken for at least a couple of days because of things I can't even imagine yet. So I've stayed away from it. Well, I have to face it one day anyway...

It's playtime!

Grab the new beta and have some fun.

Changes since the last release:

• Decks have separate start position, you no longer start new ship on one of the waypoints.


• Several waypoints near lifts have been excluded from available droid positions, making it safer to enter some decks.


• Deck sections are completely separate from each other.



  • Droids stay in the correct deck section between visits and if teleported away.


  • Power off condition is now done for each section separately.


  • Bonus is still awarded only when the whole deck is cleared.




• Some twinky stars added to background. Needs more work, especially for NTSC.


• Droids aren't completely predictable under red alert any more.


• Player droid damage calculation modified slighly, now higher class droids can take couple more hits under player influence.


• Fixed character animation, ended up rewriting it completely.


• Improved Game Over TV static.


• F7/F8 selects starting ship, assumed you've cleared one or more ship.

There may still be a problem with the subgame, but I completed the first ship without shooting a single shot (pacifistic takeover?) without seeing the bug so at least it isn't too frequent. It might have gone away when I added some more temporary buffer clearing.

It works again!

After some cursing, hair tearing and generic despair it's working again. Well, it awards deck bonus of 500 points when you clear deck section even when there are droids left in the other section, but that's a minor problem. The most important thing in that is that it now sees section as cleared and knows to turn off the lights,regardless of remaining droids. That means that droids stay put in correct half without teleporting between sections and droids in other sections aren't active at all.

Droids also seems to obey my new "don't start on this waypoint" system, which was evident when I tried entering bridge. I had excluded one waypoint too many, so there wasn't enought starting points for all droids. The game hung when trying to find free waypoint for the last droid. I like nothing more than clear signal when something is wrong :)

New waypoint checking system is a lot faster than the original one. The original check used max. 11 lines every time droid was centered on tile, no matter if there was a waypoint or not. And because of a bug it did it twice per tile! It scanned through Y-sorted list until it found same/higher Y coordinate. As there are only 14 valid Y positions for waypoints it meant that multiple X coordinates needed checking too.

Now every waypoint is marked with magic char, so droids only check for waypoint when they are over one. First check is the the usual droid_centered, and only if that's true game proceeds to find which waypoint data is needed. That test uses binary search to find the correct waypoint among 31 possible ones, so there are max. 5 comparisons.

To cut needed time down even more game calculates simple hash from x & y coordinates and uses that as primary search criteria. Only if that matches (and there are only eight hash collisions total so it doesn't happen often) it needs to test for another byte. And remember - this check will match in the end, it is never done unnecessarily.

Max. time taken is slightly over three raster lines, as seen in the attached picture.

Next beta will be out this weekend.

All hail simplicity

After I wrote the code to create all droids on ship I had second thoughts about it. The code was horrible mess, parsing deck data to get correct number of certain level droids into correct sections. Nested loops, lots of comparisons, checking every section to get droid distribution right. In the end I made one 256 byte table to place every droid where it belongs. 256 bytes is quite a lot of memory compared to 30 bytes which the droids required when associated with decks and sections. However, the table ended up being only 48 bytes when packed, and the routine which goes through it (once!) was about 80 bytes shorter than my original code. In fact it was shorter than the one from original Paradroid, and that one didn't know anything about deck sections.

Now the ship contained all the necessary inhabitants, so it was time to check out the code which activates correct droids when player enters a deck. That was bound to be easy. However, when I depacked section waypoints I didn't store their Y coordinates at all. This confused droid placement, and it had every reason to do so. That meant that I had to put Y coordinates into a temporary buffer where InitDeckDroids() could find them. Yeah right, except that there was a routine between the two subroutines which cleared the coordinate table...

NewsFlash! Viral infection grinds PR development to a halt!

Not my computer, luckily. Most of the last two days has been used to salvage data from one of the worst infected computers I've seen. Booooooooring! My recommendation: buy removable HD. Copy data there. Format C: Reinstall.

I've managed to teach the game quite a bit more about ship layout, droid distribution and other small things. Now it knows which deck part lifts connect and really should be able keep droids in their respective deck parts. I bet tomorrow will be spent on debugging every possible problem caused by game not generating droids, droids jumping around whole ship, waypoints being completely garbled up and whatever the game can think of.

Tidbit of the day: left side of observation has two waypoints, but game never generates droids there.

My God, it's full of stars!

I'm not sure if I like stationary background stars (this time I nicked the idea from Uridium) as wall chars have couple of empty pixels at the edges. This means that stars will disappear before they reach the ship. This could be explained with diffraction in the micro-atmosphere around the ship, of course...

Adding stars would be quite cheap - I only need to check for underlying char being "outside_of_deck" and replace that char with animated star char. Actually I check the next one too, to be able to have two pixels wide stars. Animating the star chars is even easier:

.stx
    ldx #0
    lda #0
    sta Font+chr_STAR*8,x
    sta Font+chr_STAR*8+8,x

    lda vScroll
    eor #7
    tax
    stx .stx+1
    ldy hScroll
    lda bits,y
    lsr
    ora bits,y
    sta Font+chr_STAR*8,x
    lda #0
    ror
    sta Font+chr_STAR*8+8,x

First it clears previous star pixels, then calculates new Y position, stores it for the next round and plots two bits into chars.

Don't mind the regular position of stars, that's just test data. Stars are exactly 64 chars apart from each other. If this gets used then star positions get randomized every time you enter a deck.

Bit by bit

After I had to come up with a name for the fastloader I decided to post this bog-standard routine I use in Paradroid Redux to depack waypoint and droid distribution data. The only reason it's worth of posting is that it doesn't use any other register than accumulator.

;   in: ax=ptr

InitGetBits
    stx .get+1
    sta .get+2
    lda #$80        ; start with end bit
    sta cbits
    rts


GetBits
.1  asl cbits       ;  5
    bne .3          ;  8

    pha             ;( 3)
.get
    lda $1234       ;( 7)
    inc .get+1      ;(13)
    bne .2          ;(16) assume not taken
    inc .get+2
.2  rol             ;(18) rotate end bit in
    sta cbits       ;(21)
    pla             ;(25)

.3  rol             ; 10
    bcc .1          ; 13  assume taken
    rts

13 cycles per bit unless new byte is needed, 25 cycles extra every 8th bit. This adds up to 16.125 per bit on average, not accounting for jsr/rts overhead.

Calling it requires loading A with a bit mask telling it when to stop. Usually this is single bit to return only input data, for example %00010000 to read four bits. However, as I need to ORA the four-bit Y coordinate with #$20, I can do it for free by doing "LDA #%00010010; JSR GetBits". The loop ends when the highest bit is rotated into the carry, so A is "0010yyyy" at that point. Even better, after I've stored the ORed value I need to multiply A by four and then add two, and this time I can use the fact that carry is always set on exit so it's just "ROL; ASL". Try to do that with a high-level language :)

Edit: oh bugger, IE6 collapses multiple line feeds into one even inside PRE tag. I hope IE7 is more intelligent.

Loading, please wait...

I cleaned up XeO3 loader (yes, it's for Commodore 264 family) slightly and added couple of comments. You can find the loader + source code here, I hope it gets added to Plus/4 World soon so people can actually find it.

The loader works with 1541/157x and 1581. Every bit is clocked separately, so it's safe to use interrupts while loading. It beats many 2-bit loaders, and allows keeping the screen on.

Resident loader part is less than 256 bytes. Save works too, but maximum size is 252 bytes and file to overwrite must be on the disk already. It's only meant for high scores anyway ;)

Porting back to C64 is easy enough, just change couple of variable definitions and remove unnecessary code.

Update:

This is not a generic turbo you would use to load programs with. It was meant for game/demo use and so it has some limitations.

• You can't LOAD "$",8.


• Drive code is disabled (drive is reset) as soon as ATN line is active. This means that it's gone as soon as you access any device on IEC bus with kernal routines.


• Drive code is installed only once, so once it's gone, it's really gone. That's the dark secret behind small resident code.


• If you try to LOAD/SAVE without restoring kernal vectors once drive code is gone, computer will hang waiting for drive response.

Optimal interleave is 16 sectors, unless your interrupt takes lots of time. In that case try interleave 17 or 18 to see if that speeds up loading. Normal interleave used by 1541 is 10, which means that the loader must wait additional 10+ sectors to pass by the r/w head before reading next sector from disk surface.

629 - number of the crap

No, not really. 883 still holds that position, but 629 is a close runner-up. 615 is bit more usable after damage adjustment, but I'm still not going to change my playing style.

Lift exit bug seems to have gone away when I reverted back to the original code. I hope it stays there, too.

Aye, captain! Turbolift is up and running

One deck map is 16 KB of data, so it takes a while to build one from 64*16 byte layout. That's why lift movement between decks is as slow as it is - game builds the deck in advance to avoid delay when you exit the lift.

I modified the lift routine to check if it was allowed to move up/down from the new deck and to pass that info to the deck building subroutine. Deck builder checks halfway through the data if joystick is pushed to allowed direction, and if it is then the routine exits without finishing the deck. Lift routine then sees the return value and moves to next deck if needed. When joystick is finally released or there are no more decks above/below current one, the deck gets fully built.

The end result: lift appears to be twice as fast as before, without affecting the exit time much.

While testing it on real C64, I noticed that a new bug has crept in - sometimes the game pushes player droid inside the wall when it exits the lift. I haven't been able to repeat the bug inside VICE, which makes it "fun" to find. I suspect my new and optimized "keep old position on tile when exit" code. Maybe I will just center the droid on lift tile, as I bet there's "stay away from walls" sign in the lift anyway...

I've also modified player damage calculation slightly. Earlier player droid class didn't affect the amount of damage it received from enemy fire, now higher class droids take a little less damage, especially from single laser. The difference isn't big, but now it's a bit more tempting to use higher class (and faster decaying!) droids instead of 476.

?No space in brain error

You all have noticed how 999 description text has extra space after the word "brain", haven't you? Twice, even. That's because the same string token is used for the first page of droid data, and space is needed to align the text. Three other strings are padded too, but they don't affect any other text. Instead of adding one more token costing five bytes I removed all trailing spaces and added code to do the aligning. Couple of changes later I had won one byte and nice warm feeling, knowing that now the text is perfect.

Speaking of space saving - I checked how much free memory I have, and I have 400+ more bytes than two weeks ago. If I continue like this the game doesn't use any memory at all after couple of years...

... no, not really. New TV static routine suggested by Mike is longer than the original. Oh, horror! However, it looks so much better than the original that I can accept the loss of six bytes.

I took the blue pill

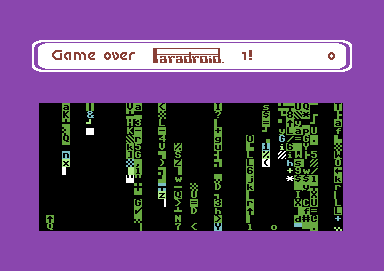

While the Matrix effect with Paradroid charset doesn't look all that bad (in fact I like it more with 1x2 charset) it looks really out of place when it's used inside the game. Next one to try is to get "true" random static. That may require more than four different "random" chars, which means some extra data to be moved around. I already re-use console icons for waypoint markers, swapping them in and out as needed.

Too kitsch, or not too kitsch: that is the question.

Nothing much done today, except one completely unrelated routine inspired by some random web site. Funny thing, I have never thought about writing Matrix character drop effect for C64 before.

Now I'm wondering how it would look with Paradroid font. Core routine is about 200 bytes, which is longer than the original TV static effect. However, I've saved quite a lot of space reserved for data, so I could take some of it back.

I guess there's only one way to find out how it really looks. Code has to be changed slightly to cope with 1x2 chars, but other than that it should be simple case of inserting the new code (famous last words?)

Let There Be Light

On a sunny summer day in Finland it finally happened - I gave in and started a blog about my Paradroid hack. Unlike PC remakes this one is made for the Commodore 64. (Enough links already? Can I stop it now?)

The disassembly was completed over a year ago, and since then there have been many changes. Main goal was to give it a nice speed boost, but I couldn't resist changing some other things as well. You can read more about it here, but let's recap the list:

• Support for second fire button.
  No more accidental transfers.
• Number of droids remaining on deck/ship shown in console
  Nicked from Paradroid'90.
• Statistics for previous game can be viewed during intro sequence.
  Nicked from the same source...
• Start ship can be selected from any previously visited ships.
  One more from Paradroid'90. This info is saved to disk so you can carry on from your last game.
• Scoring changes: alert scoring is altered to match the original instructions, ship clear now has both accuracy and alert bonus (p90 is good for inspiration!). I also replaced rather stupid "lowest scre of the day" with all time high score, which is saved to disk.
• Droid AI has changed quite a lot: droids flee/pursuit depending on their level, energy and ship alert status. Radar equipped droids do that even if player is not visible.
• Damage calculation has changes slightly as well. Droids getting hit by friendly fire sustain same damage than from player, and explosion does sligthly less damage so it's easier to survive one. Explosions don't restart any more when hit by laser/disruptor, which makes them less deadly as well.
• Original game killed droids when there were no free sprites, I attempt to teleport them to some other part of deck.
• Droids bumping into each other behave randomly.

You all knew that all already, so let's end this entry with something useful to know. When writing minimal saving routine, be sure to clear memory location $02a1 beforehand. Otherwise you may get endless loop when kernal waits RS232 routines to release IEC bus. Here is the minimal version of system restore before load/save:

RestoreSystem
        pha

        ldx     #$80        ; store game vars
.1      lda     0,x
        sta     $bf00,x
        inx
        bne     .1

        stx     $02a1       ; avoid IEC_idle hang
        stx     $9d         ; no messages

        inc     $01         ; kernal in
                            ; IRQ will now use $0314
        pla
        rts
